Features

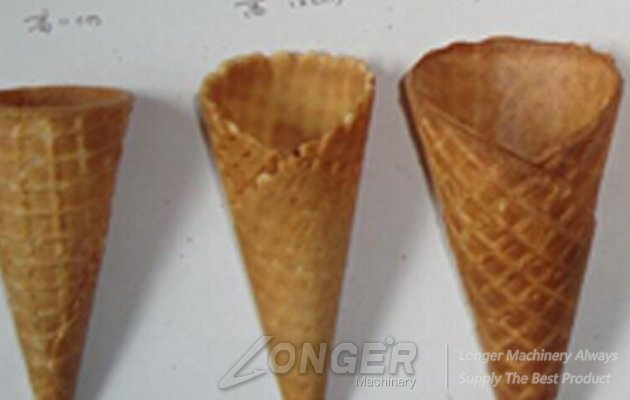

This series of baking machines can be used to produce products contain more sugar and oil. First, a piece of flake was baked, Then It would be rolled into cone, cylinder, bowl or other shapes before it is cooled.LG-12 automatic baking machine is used for rolling sugar cones.
It offer cones to the next process to be filled with ice cream. First it dispenses batter on the baking plates to prepare the wafers for shaping, then rolls them up, keep them in shape unload them finally. t is the main device of the production line. Excellent performances have allowed International Standards to be comfortably met. Stainless steel, easy operation, high efficiency. Low noise, High Capacity with low Power. Easy to operate, Easy for cleaning. We have many different molds for different size and shape cones, and you can replace the molds on the machine. We also have many different capacity products, you can choose different baking numbers of the machine according to your needs.
It offer cones to the next process to be filled with ice cream. First it dispenses batter on the baking plates to prepare the wafers for shaping, then rolls them up, keep them in shape unload them finally. t is the main device of the production line. Excellent performances have allowed International Standards to be comfortably met. Stainless steel, easy operation, high efficiency. Low noise, High Capacity with low Power. Easy to operate, Easy for cleaning. We have many different molds for different size and shape cones, and you can replace the molds on the machine. We also have many different capacity products, you can choose different baking numbers of the machine according to your needs.
Technical Data
| Model | LG-12 |
| Capacity | 2500pcs/h |
| Power | 12kw |
| LPG consumption | 4kg/h |
| Compressed air pressure | 0.6MPA |
| Compressed air consumption | 6 m ³ / hr |
| Weight | 3000kg |
| Outline size | 3000*2000*1680mm |
